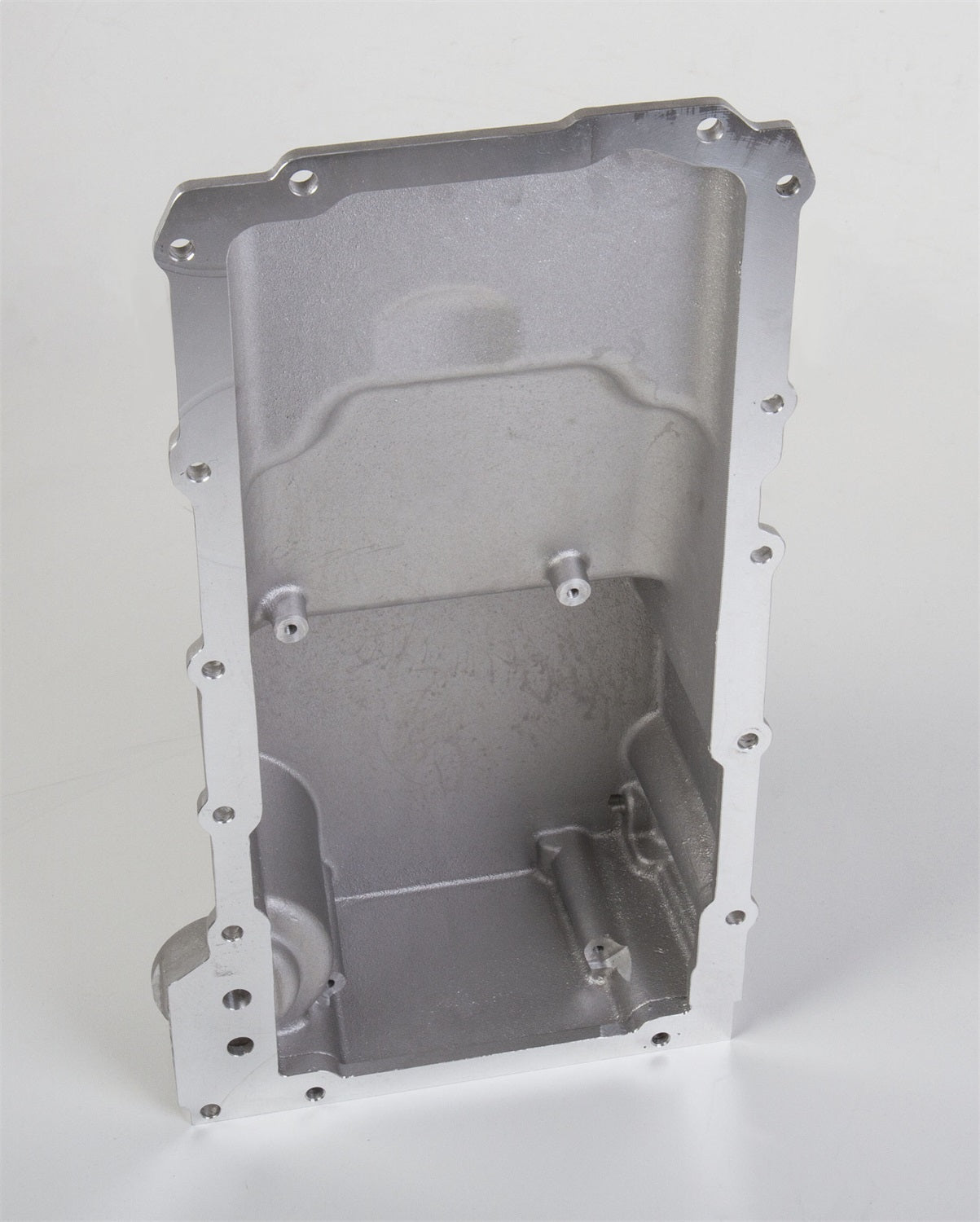

LS Retro-Fit Engine Oil Pan

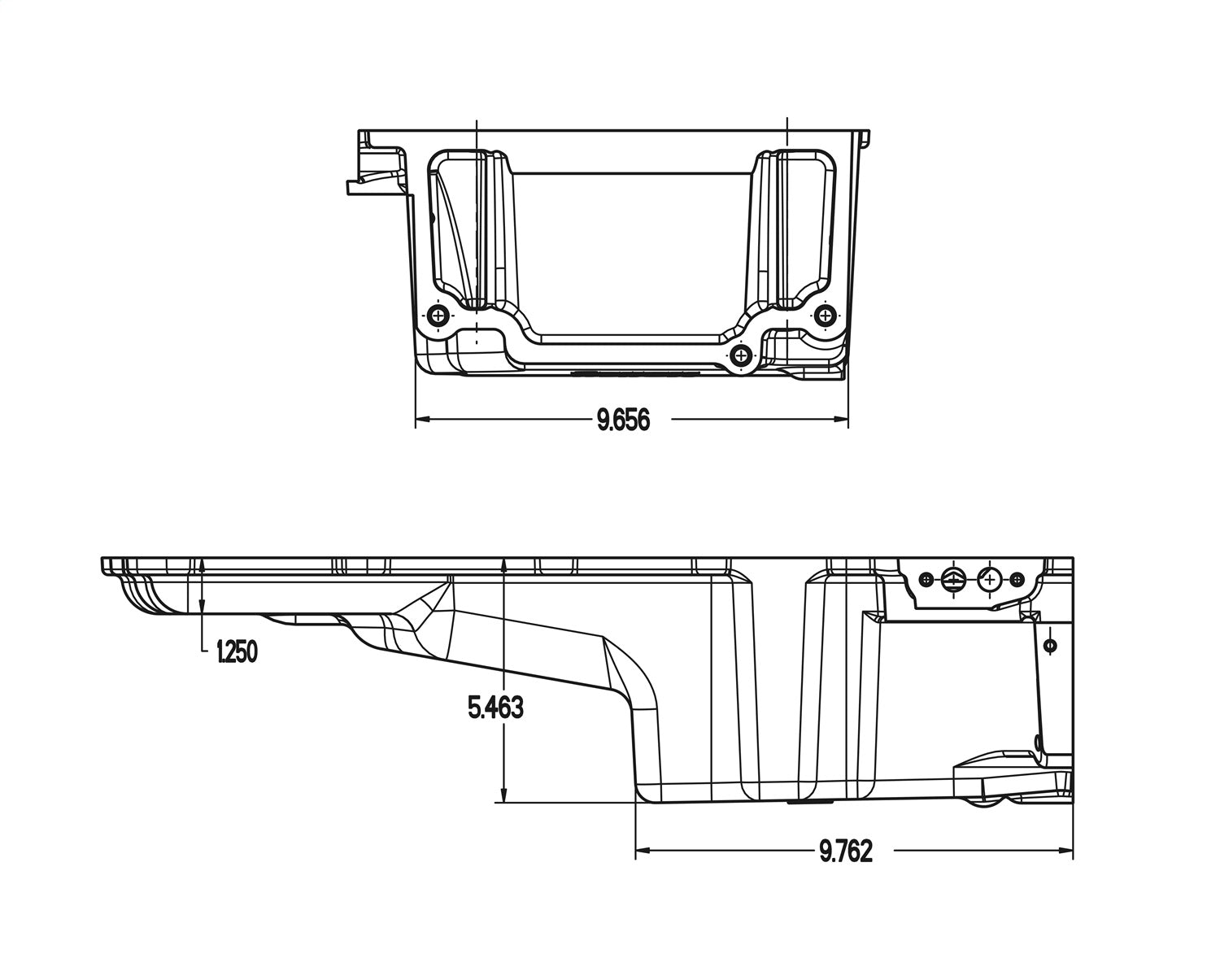

GM LS Swap Oil Pan - 1955-1987 GM/Muscle Car/Classic Car/Trucks Cars requiring more clearance at the front half of the oil pan Great for 1967-1969 Camaro/Firebird, 1968-1974 Nova/Apollo/Ventura/Omega, 1982-1992 F-body, 1978-1987 G-body, and 1964-1972 A-body applications.GMs popular LS engines are finding their way into a large variety of vehicles. They make great power, plus theyre very durable and reliable. Unfortunately, the factory LS pans dont always fit or they hang too low for todays hot rods. Holleys new LS Retro-fit Engine Oil Pan is designed to help! It provides maximum clearance to the chassis and ground, plus provides an OE (Original Equipment) style fitment for durability and proper sealing. Distance between the Oil Pickup and the bottom of the pan is .378 Inch. Distance between Pickup Tube and the side of the oil pan is 0.136 Inch.
